Refinement

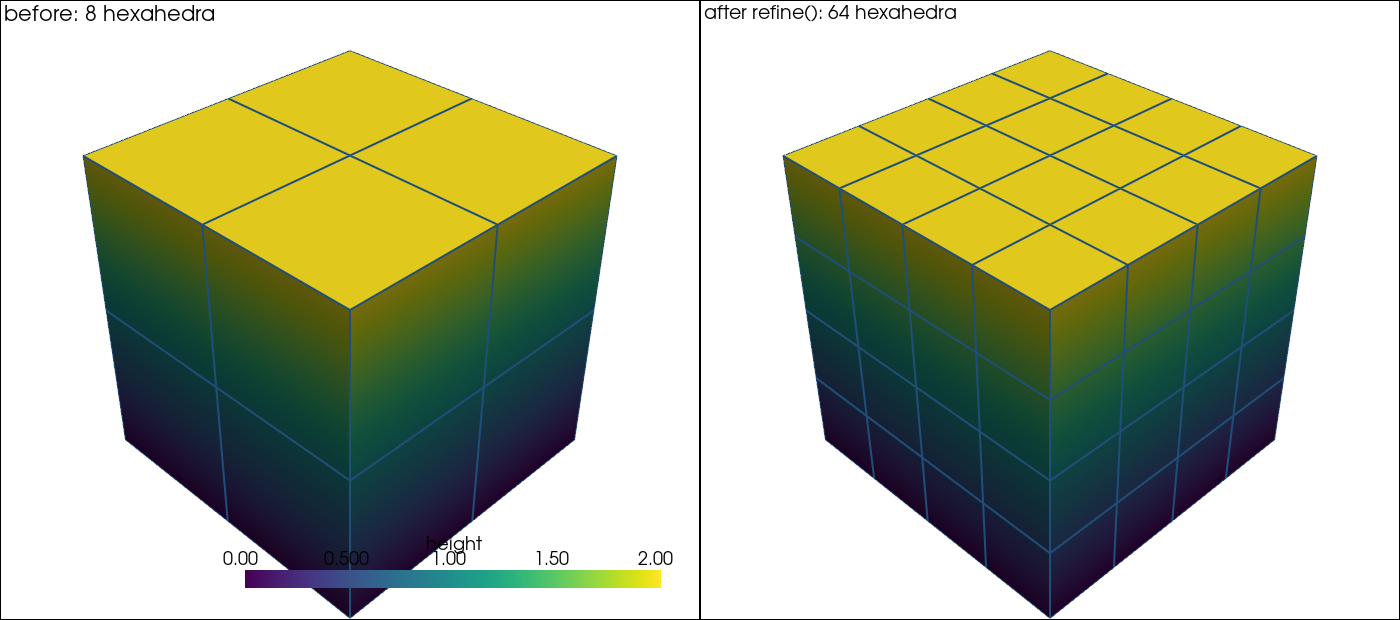

meshioplusplus.refine(mesh, levels=1) subdivides cells into congruent children of the same cell type, increasing a mesh's resolution while leaving the object it describes intact. It is a mesh operation (like cell conversion and crop), not a file format, and uses only standard C++/numpy, so it runs under every mesh backend.

With no selector it refines every cell (the uniform case, below). With one — a cell list, a region, or a cell_data threshold — it refines only those cells and resolves the hanging nodes that leaves, so the output is still a valid conforming mesh: see Selective (adaptive) refinement.

import meshioplusplus

mesh = meshioplusplus.read("domain.msh")

# one level: every tetra -> 8 tetra, every quad -> 4 quad, ...
fine = meshioplusplus.refine(mesh)

# two levels: 64x the cells for a volume mesh, 16x for a surface mesh
finer = meshioplusplus.refine(mesh, levels=2)

# tag each output cell with the original cell it descends from
tagged = meshioplusplus.refine(mesh, record_parent_ids=True)

# adaptive: refine only the worst cells, and close up conformingly around them
graded = meshioplusplus.refine(
    meshioplusplus.attach_quality(mesh),
    where="quality:scaled_jacobian < 0.3",
    record_levels=True,
)

meshioplusplus.write("fine.vtu", fine)

Templates

cell type	children	new nodes per cell
line	2 × line	1 edge midpoint
triangle	4 × triangle	3 edge midpoints (the standard 1-to-4 split)
quad	4 × quad	4 edge midpoints + 1 face centre
tetra	8 × tetra	6 edge midpoints
wedge	8 × wedge	9 edge midpoints + 3 quad-face centres
hexahedron	8 × hexahedron	12 edge midpoints + 6 face centres + 1 body centre

Each block is refined by its own template, so a mixed-type mesh is fine. New nodes are numbered to coincide with the type's own full-Lagrange layout (line3, triangle6, quad9, tetra10, wedge18, hexahedron27), which is what makes the templates readable against the reference elements.

A wedge refines as a triangle 1-to-4 split × 2 vertical levels, and the mid-level triangle's three edge midpoints are its three quad-face centres — which is why a wedge needs no body node while a hexahedron does.

Three constructs raise rather than guess:

• higher-order cells (tetra10, quad8, …) — linearize the mesh first (convert_cells(mesh, mode="linearize"));
• pyramid, whose uniform refinement is 6 pyramids + 4 tetrahedra and so cannot keep the same-type contract — simplexify the mesh first;
• ragged polygon/polyhedron blocks, which have no subdivision template.

Passing an unsupported block through unchanged would leave hanging nodes at every interface with a refined neighbour, so these fail loudly instead.

Conformity

The refined mesh has no hanging nodes. Mid-edge nodes and quad-face-centre nodes are shared between every cell touching the entity; only the hexahedron body node is per-cell. Sharing the face centres is not optional — with a per-cell copy, two hexahedra meeting at a face would reference distinct coincident nodes and the mesh would be topologically split along every interior face, which extract_surface would then report as boundary.

Two neighbours compute a shared node's coordinate as the mean of the same corner set. The mean is order-independent, so both arrive at bit-identical coordinates with no tie-breaking rule.

The tetrahedron's interior diagonal is fixed at the opposite-edge pair (0,1)–(2,3) for determinism only. Being strictly interior — no face of a tetrahedron contains both opposite edges — it never affects conformity: a face's subdivision is fixed by that face's own mid-edge nodes whatever the neighbour does. This is the opposite of convert_cells' hex-simplexify diagonal 0–6, whose endpoints lie on the boundary and which therefore is conformity-critical.

What changes

• Block structure is preserved 1:1: the output has exactly as many cell blocks as the input, in the same order and of the same types. That is what keeps the cell_data correspondence (one array per block) trivially correct under every backend.
• Points: originals keep their indices; new nodes are appended.
• point_data: a new node gets the mean of its entity's corner values (2 for an edge, 4 for a quad face, 8 for a hexahedron body), so a linear field is interpolated exactly. The input dtype is preserved.
• cell_data: each parent's row is replicated to its children. field_data passes through.
• point_sets / cell_sets are remapped in the Python layer; a cell-set entry expands to the parent's children (which are contiguous).
• record_parent_ids=True attaches an Int64 refine:parent_cell cell_data array naming, per output cell, the original input cell it descends from within its own block — the original ancestor, not the immediate parent, even at several levels.
• mesh.info and gmsh_periodic are not carried through (as for every other operation).

Output is deterministic: the templates are fixed and the new-node numbering is assigned by a serial pass over a parallel-filled buffer, never a concurrent hash insert. Results are byte-identical across the MESHIO/NATIVE/KRATOS backends and any thread count.

Selective (adaptive) refinement

Refining a subset of the cells leaves hanging nodes on the interface, so the operation also has to close the mesh back up. refine does that from one set — which edges carry a new node — and derives everything else from it.

Refining one corner cell of a 4×4×4 block takes it from 64 to 125 cells under the default closure, against 512 — the full uniform refinement — under propagation.

Selectors

At most one may be given; two is an error rather than a precedence rule, because silently ignoring a selector the caller typed is the failure mode worth refusing. With none, every cell is refined.

selector	meaning
cells=[3, 7, 12]	global block-major cell indices — the numbering named regions and partition_labels use
region="hot"	a Cell region selects its own cells; a Point region selects every cell with any node in it; a Side region is an error, since a facet is not a cell
where="quality:skewness > 0.7"	a threshold on a scalar cell_data array, spelled NAME OP VALUE with OP one of <, <=, >, >=, ==, !=

The closure then decides what happens to everything the selection touched: "redgreen" (default) and "propagate" both return a conforming mesh; "balanced" keeps the hanging nodes and only enforces 2:1 balance.

A non-finite cell value never matches a predicate. That is deliberate rather than incidental: compute_quality reports NaN where a metric does not apply — scaled_jacobian is NaN for a quadrilateral in 3-D, for instance — so rejecting such an array outright would break the case the feature exists for. The flip side is that a predicate over a metric that is N/A for a cell type simply selects nothing there.

How the closure works

A cell's state is a bitmask over its edges. Not every mask has a same-type subdivision, so a mask that has none is promoted to the smallest admissible superset — which splits more edges, which may promote further, and so on to a fixed point. Because each type's admissible masks are closed under intersection, "the smallest admissible superset" is well defined and the promotion is a monotone idempotent closure operator; the mesh-wide fixed point is therefore unique and independent of the order cells are visited in. Determinism here is a property of the formulation, not a convention about traversal.

Whether a new node exists is likewise derived, never tabulated:

• an edge carries a node iff it is split;
• a quad face carries a centre iff all four of its edges are split;
• a hexahedron carries a body node iff all twelve are.

Two cells sharing an entity read the same edges and so reach the same answer, which is what makes conformity structural rather than something the tests merely sample. When every edge is split these rules collapse into the uniform templates above — which is why uniform output is byte-identical to a build without any of this.

Support matrix

closure="redgreen" (the default) promotes to the smallest admissible mask:

cell type	admissible masks	children	what propagates
line	all	1, 2	nothing
triangle	all	1, 2, 3, 4	nothing
quad	none, either opposite edge pair, all	1, 2, 2, 4	one row of a structured grid
tetra	none, any 1 or 2 edges, the 4 face-triples, all	1, 2, 3, 4, 8	nothing, for those masks
wedge	none, the 6 triangle edges, the 3 verticals, both	1, 4, 2, 8	one layer / one column
hexahedron	unions of the 3 parallel edge classes	1, 2, 2, 2, 4, 4, 4, 8	one dual sheet

The quadrilateral row is forced, not chosen: a quadrangulation of an n-gon satisfies 4Q = B + 2I, so an odd boundary count is impossible and a quad with one or three split edges has no all-quad subdivision at any number of interior nodes. Promoting it to the opposite pair is the finest type-preserving answer there is, and the reason a single refined quad costs a row rather than the whole grid. The tetrahedron's three-edges-at-a-common-vertex mask is excluded deliberately: it would put the ambiguous two-edge case on all three incident faces at once.

Every green child has the parent's own cell type, which is what keeps output blocks 1:1 with input blocks — and therefore keeps mCellMaps, refine:parent_cell, the cell_data slicing and every binding's map shape exactly as they are in the uniform case.

closure="propagate" instead promotes any non-empty mask straight to a full split. It is always conforming and defined for every cell type, but it is not local: a fully split cell splits all of its edges, so every edge-neighbour is promoted in turn and the cascade reaches the whole edge-connected component. On a connected mesh it is the uniform refinement. It ships as the always-works baseline and as the test oracle — not as an adaptivity mode.

closure="balanced" — keep the hanging nodes

The third option does not close at all. It splits a cell fully or not at all — there are no transitional templates — and only enforces 2:1 balance, drawing a cell in when a neighbour would otherwise end up more than one level finer:

refine C ⟹ C's level rises by one D must refine ⟺ some cell sharing a node with D would end up more than one level above D

Adjacency is by shared node, not by shared edge, and that is not a detail: across a hanging interface the coarse cell spans a whole edge while the fine cell has only half of it, so the two are different entities and an edge-keyed rule would be blind to exactly the coarse/fine adjacency it exists to police. (It is also the stronger, standard "corner balance", so a diagonal neighbour counts.)

On a mesh of uniform level that condition holds nowhere, so refining one cell propagates to nothing:

4×4×4 block, one cell selected	cells
redgreen	125
propagate	512 (= uniform)
balanced	71 (= 64 − 1 + 8)

Balancing only bites once levels differ — from the second adaptive pass onwards — and even then it reaches one ring of neighbours rather than the whole mesh. This is what an adaptive-mesh-refinement code normally means by "propagate", and the only mode whose cost is bounded by the selection rather than by the mesh.

The price is stated rather than hidden: the result is 1-irregular and not conforming. Every constrained node is reported in the Int64 refine:hanging point_data array (1 = hanging), so a solver can eliminate it — the array marks exactly the constrained nodes, edge midpoints and quad-face centres alike, neither a superset nor a subset. The conformity guarantees below apply to the other two closures only, and extract_surface, decimate and anything else assuming a conforming mesh will treat a hanging node as a genuine boundary.

1-irregular is the only thing given up. The mesh is never torn: no two distinct nodes ever occupy the same position with cells referencing both. That is what refine:entity is for.

refine:level is what makes the rule well defined across passes, which is another reason that array is maintained rather than replicated.

refine:entity

The Int64 (num_points, 4) point_data array recording, per point, the entity it was created on:

key	meaning
(-1, -1, a, b)	the midpoint of edge (a, b), a < b
(p, q, r, s) sorted	the centre of the quadrilateral face with those corners
(-1, -1, -1, -1)	a point refine did not create — an original point, or a hexahedron body centre, which is interior to one cell and can never be shared

It exists so that a later pass can recognise that an entity it is about to split already carries a node and reuse it, instead of allocating a coincident second one. Without it, a second balanced pass tore the mesh: when the 2:1 balance rule draws in a coarse cell whose edge (a, b) already holds a hanging node, that cell's own refinement keys the edge as (a, b), allocates a fresh midpoint, and leaves the two sides of the interface referencing distinct — but exactly coincident — nodes. On a 4×4×4 hex block, levels=2 produced 12 such positions and levels=3 produced 96.

Like refine:level the name is reserved and the array is maintained rather than replicated: it is attached whenever a pass leaves hanging nodes and kept thereafter. The conforming closures leave none and attach nothing, so their output is byte-identical to what it was before the array existed.

Entries name point indices, which refine never renumbers. An operation that does renumber points (reorder, clean, crop, merge) or moves them (transform, smooth) invalidates them. refine detects that — every entry must still reproduce its own point's coordinates — and warns and ignores the array rather than trusting it, falling back to allocating fresh nodes.

Why the hanging rule is evaluated over the output

A node is constrained when it sits on an entity of a cell that does not reference it, and that has to be checked against the emitted cells rather than the input cells' entities. The two differ as soon as a pass refines more than one level: a cell the balance rule draws in is split into children whose own sub-edges the input cell never had, so a node the neighbouring refinement places on one of them is constrained without any input entity ever naming it. Checking the input left 42 of 84 constrained nodes unreported on a two-level balanced refinement of a 4×4×4 block.

One choice made from global node ids

A cell with two adjacent split edges on one face leaves a quadrilateral remnant there that needs a diagonal, and the cell on the other side of that face must pick the same one. The choice is therefore made from the global node ids — the diagonal starting at whichever of the two surviving corners has the smaller id — never from the template's local numbering, which two differently-oriented neighbours would disagree about.

refine:level

record_levels=True attaches an Int64 refine:level cell_data array: 0 for a cell no full split ever touched, incremented once per full split. A transitional child inherits its parent's level unchanged, because a green split is a closure, not a refinement. Colour by it to see the grading.

The name is reserved. An input that already carries it is updated rather than replicated, whatever the flag says — the flag only controls creating it — so successive passes accumulate rather than reporting a stale depth. A mesh without the array and without the flag is unaffected.

With levels > 1 and a selector, level k refines the children of level k − 1's fully split cells; green and untouched cells are not re-refined.

refine:cell_id and refine:parent_id

record_hierarchy=True attaches two Int64 cell_data arrays that persist a parent/child hierarchy the caller can resolve across separate calls, unlike mCellMaps (which dies with the call) or refine:parent_cell (a row index into a mesh the caller may since have renumbered).

The hierarchy is a link between two meshes, not a tree inside one. A multigrid — or future green-undo — caller keeps every pass's output mesh; the fine mesh's refine:parent_id resolves against the coarse mesh's refine:cell_id:

• An unsplit cell keeps its own id and is its own parent (parent_id == cell_id).
• A split cell's children each get a fresh id and carry the parent's id.
• When the coarse mesh carries no refine:cell_id of its own, a cell's implicit id is its global block-major index — the same numbering detail::block_bases/partition_labels use.
• parent_id names a cell of the mesh passed to this call — the same rule refine:parent_cell follows: two levels=1 calls give immediate parents, one levels=n call gives the original ancestor, because only the mesh actually named in the call is one the caller could have kept.

Given both meshes, red/green/untouched classify with no further storage: an untouched cell has parent_id == cell_id; a green (transitional) child has parent_id != cell_id and the same refine:level as its parent; a red child's refine:level is one more than its parent's — which is why no third refine:green array exists.

record_hierarchy=True also forces refine:entity to be attached, even when the closure leaves no hanging node (the normal redgreen/propagate case, where it would otherwise never appear at all — see above). That array already records exactly which 2 or 4 coarse nodes each new fine node is the mean of, which is the multigrid prolongation operator's stencil and weights: combined with mPointMap being the identity (a coarse node keeps its index in the fine mesh), it completes the coarse→fine transfer operator for free.

The name is reserved, on the same policy as refine:level: an input that already carries a valid refine:cell_id is updated whatever the flag says. A duplicated or malformed id is dropped with a warning rather than trusted — ids are values, not indices, so reorder/crop/clean carry them correctly with no coordinate check, but a repeat means the mesh was merged with another hierarchy or the array was replicated without being updated.

Interacts with split: an unqualified split(mesh, by="tag") (no explicit array name) auto-picks the first sorted integer cell_data array, and "refine:cell_id" sorts ahead of ordinary material tags. On a mesh carrying this array, always name the array explicitly — and note that split(mesh, by="tag", tag="refine:parent_id") is itself the sibling-grouping recipe: it yields one piece per distinct parent (a singleton for every untouched cell).

What is not implemented

• Green elements are not undone before a later refinement. The standard rule is to restore a transitional cell to its parent and re-split from scratch; this implementation refines the transitional children directly, so repeated selective passes over the same region degrade element quality without bound. refine:cell_id/refine:parent_id plus refine:level is exactly the hierarchy a future green-undo would need, which is why they can now be recorded.
• Mixed-type green (a quad closing into triangles, a hex into pyramids) is not offered. It would localize the quad's one- and three-edge cases further, at the cost of one input block emitting several output blocks — which the mCellMaps "first child within the corresponding output block" contract, and therefore every binding's map shape, cannot express.

Invariants

• The output is conforming under redgreen and propagate: no hanging nodes, and no facet shared by more than two cells. Under balanced it is 1-irregular by design, and refine:hanging marks every constrained node.
• The output is never torn, under any closure and any number of passes: two distinct nodes never occupy the same position with cells referencing both. See refine:entity.
• Every selected cell is fully split; every other cell is either untouched or minimally split by the closure.
• New nodes are the mean of their entity's corners, which is order-independent, so neighbours agree bit-for-bit with no tie-break.
• cell_data is replicated parent → children, transitional children included; point_data is interpolated onto the new nodes exactly as in the uniform case.
• Named regions (and so point_sets/cell_sets) are remapped, with a refined cell's region membership expanding to its children.
• Output is byte-identical across the MESHIO/NATIVE/KRATOS backends, across thread counts, and across the C++-core/numpy-fallback boundary — pinned by tests/python/test_refine.py::test_cpp_matches_python_selective.

Volume and orientation

Children inherit the parent's orientation, so a well-oriented input refines to an output with zero newly-inverted cells.

Volume is conserved exactly for line/triangle/quad/tetra always, and for wedge/hexahedron when the parent is affine (a right prism / parallelepiped). For a general trilinear hexahedron the eight children's volumes do not sum to the parent's, because the parent's bilinear faces are replaced by four different bilinear patches — that is a property of the geometry, not of this implementation.

Refinement is exponential in levels: one level multiplies a surface mesh's cell count by 4 and a volume mesh's by 8. refine logs a warning when a level would produce more than ~20 M cells, since the failure mode at depth is exhausting memory rather than returning a wrong answer.

The numpy fallback handles rectangular cell blocks, which is every type refine supports.

CLI

meshioplusplus refine in.msh out.vtu
meshioplusplus refine in.msh out.vtu --levels 2
meshioplusplus refine in.msh out.vtu --record-parent-ids

# adaptive
meshioplusplus refine in.msh out.vtu --cells 12,13,44 --record-levels
meshioplusplus refine in.msh out.vtu --region hot
meshioplusplus refine in.msh out.vtu --where "quality:scaled_jacobian < 0.3"
meshioplusplus refine in.msh out.vtu --cells 12 --closure propagate
meshioplusplus refine in.msh out.vtu --cells 12 --closure balanced --record-levels
meshioplusplus refine in.msh out.vtu --cells 12,13 --record-hierarchy

See the CLI reference.

Other languages

• C API — mio_refine(mesh, levels, record_parent_ids) returns an opaque mio_refine_result (_mesh borrow, _take_mesh, zero-copy _point_map / _cell_map, _free). mio_refine_ex(mesh, &opts) takes a mio_refine_opts with the selection, closure and record_hierarchy; zero-initialize it through mio_refine_opts_init and it reproduces mio_refine exactly. See the C API reference.
• Fortran — mesh%refine(levels, record_parent_ids=..., point_map=..., cells=..., region=..., where_array=..., where_op=..., where_value=..., closure=..., record_levels=..., record_hierarchy=...); cells is 1-based here. See the Fortran reference.
• Julia — refine(mesh; levels, record_parent_ids, cells, region, where_array, where_op, where_value, closure, record_levels, record_hierarchy); cells is 1-based. refine:cell_id/refine:parent_id ride the raw C-side numbering unshifted, like partition_labels' part ids — they are stable identifiers, not index maps. See the Julia reference.
• R — mio_refine(mesh, levels, record_parent_ids, cells, region, where_array, where_op, where_value, closure, record_levels, record_hierarchy); cells is 1-based. See the R reference.
• WebAssembly / JavaScript — refine(mesh, levels, recordParentIds, options) where options is {cells, region, array, compare, value, closure, recordLevels, recordHierarchy}, and the convertSurfaceOps pipeline op {op: 'refine', ...} takes the same fields. The comparison is spelled compare there because op is the pipeline step's own discriminant. See the WebAssembly reference.
